FABRICATION, HF1200

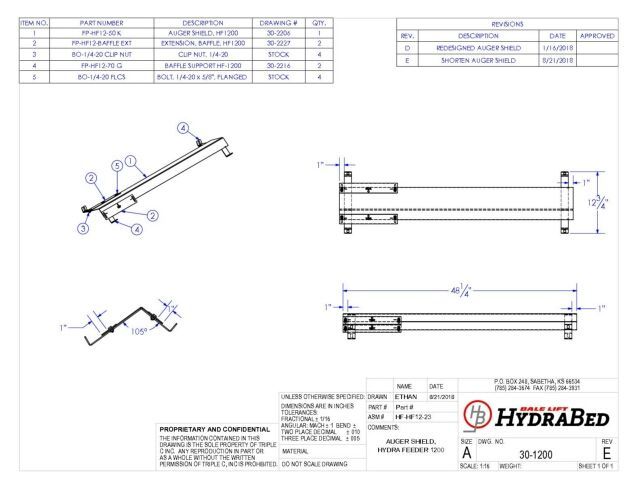

30-1200 HF1200 Auger baffle weldment.PDF

2018-08-21

Button

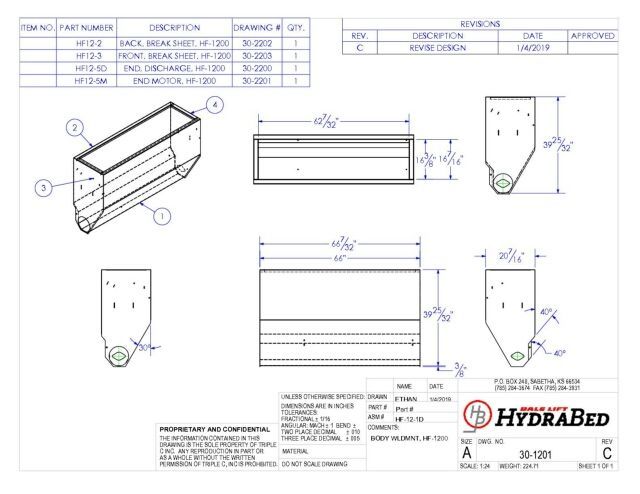

30-1201 Body wldmt HF1200.PDF

2019-01-04

Button

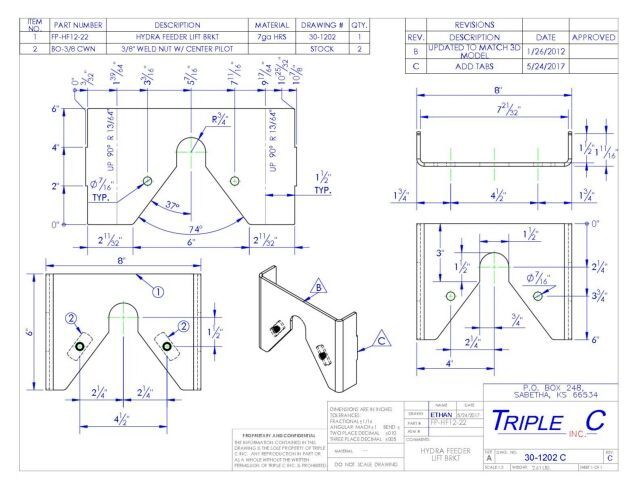

30-1202 HF Lift Bracket.PDF

2017-05-24

Button

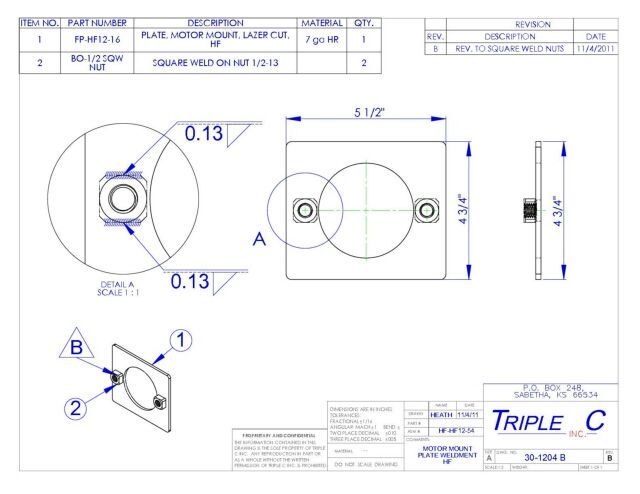

30-1204 Motor mount plate weldment.PDF

2011-11-04

Button
