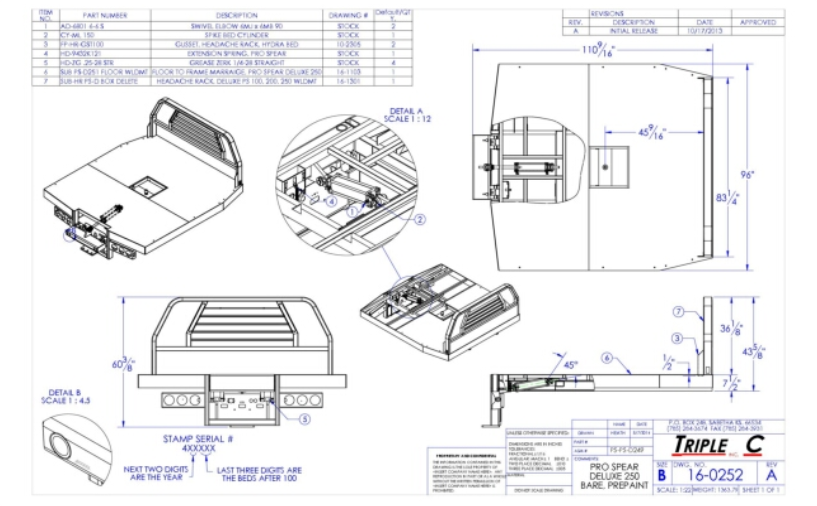

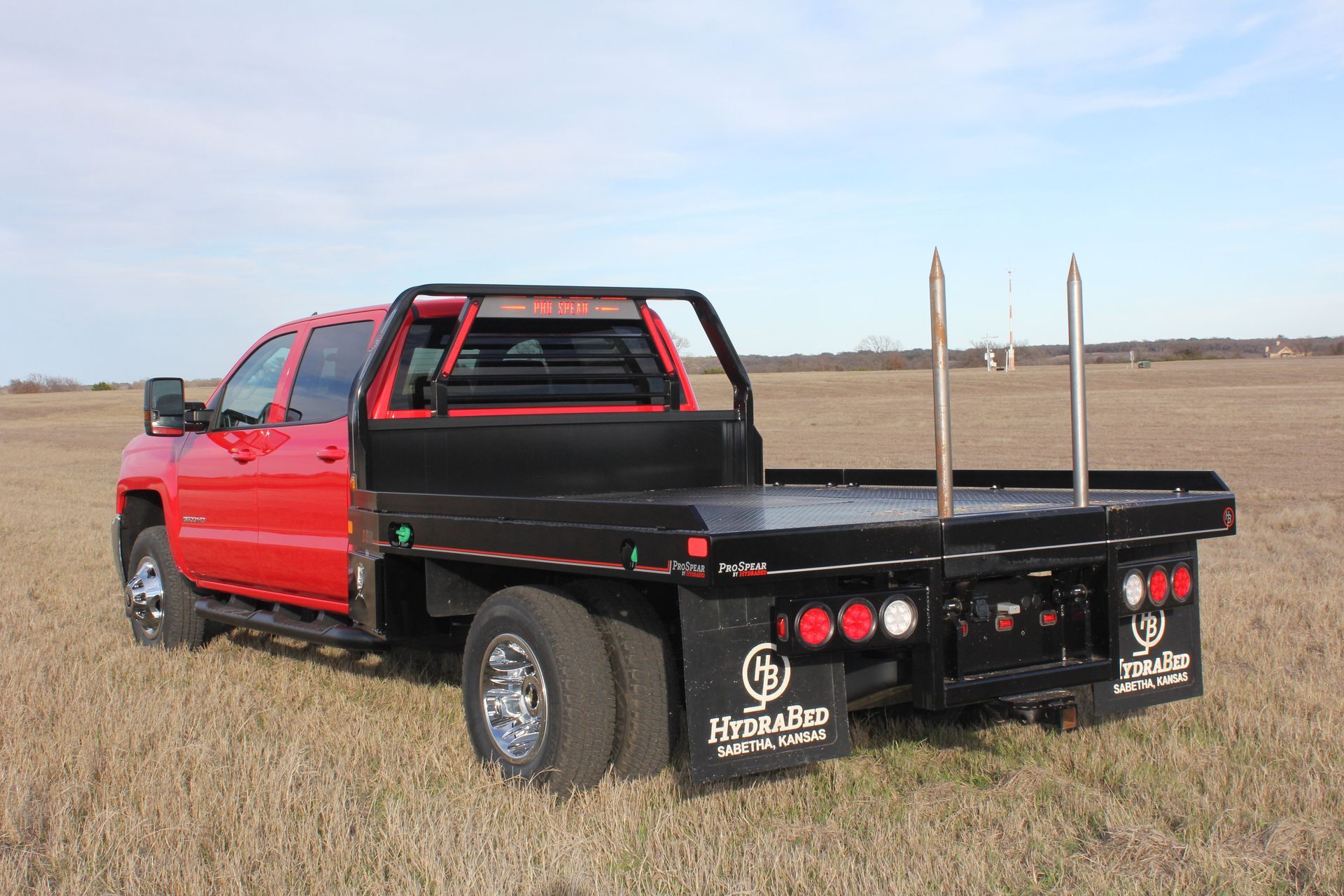

FINAL ASSEMBLY

SALES & SERVICE2

Button

GENERAL DIMENSIONS

Button

TRADE DRESS

Button

HYDRAULIC INSTALLATION

Button

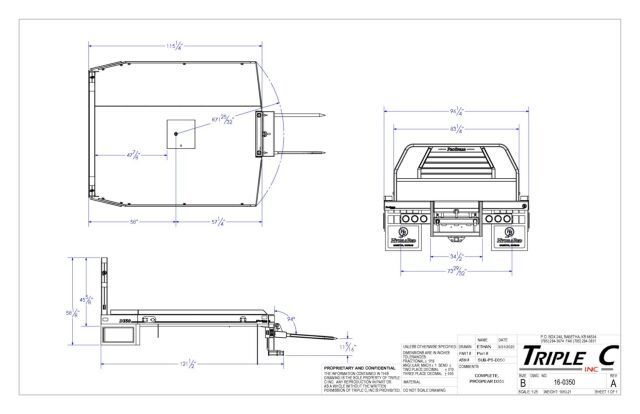

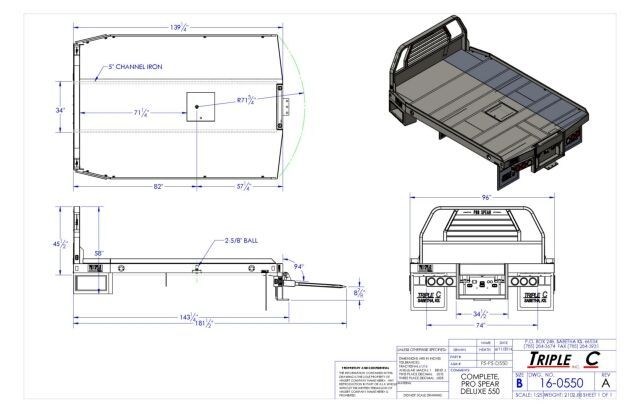

GENERAL DIMENSIONS

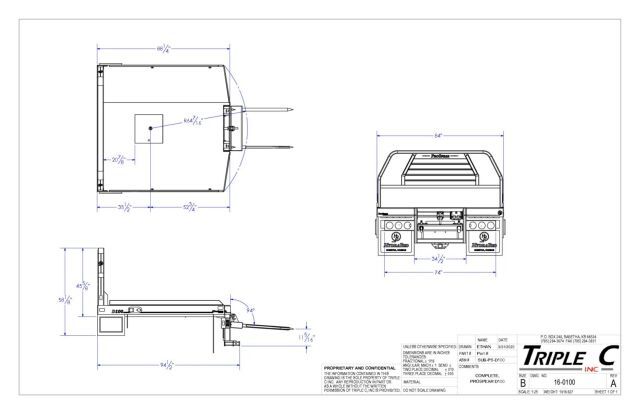

16-0100 PS-D100 General Dimensions.PDF

2020-03-31

Button

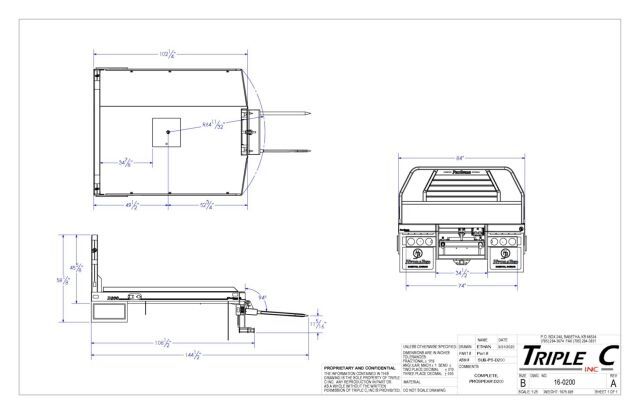

16-0200 PS-D200 General Dimensions.PDF

2020-03-31

Button

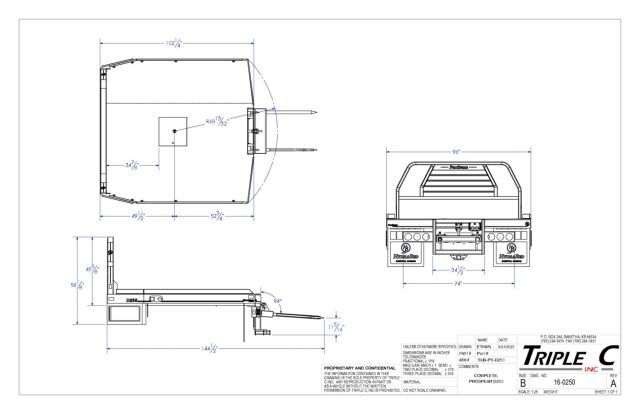

16-0250 PS-D250 General Dimensions.PDF

2020-03-31

Button

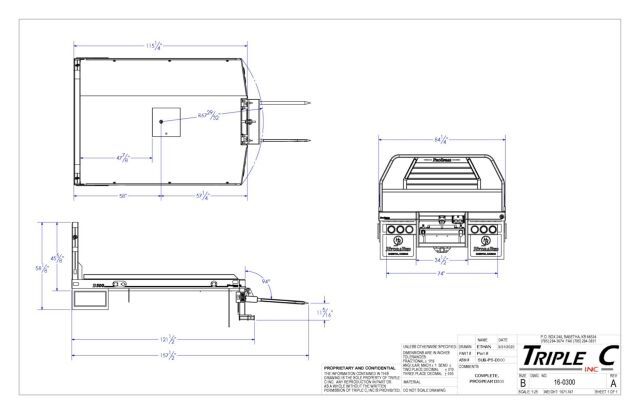

16-0300 PS-D300 General Dimensions.PDF

2020-03-31

Button

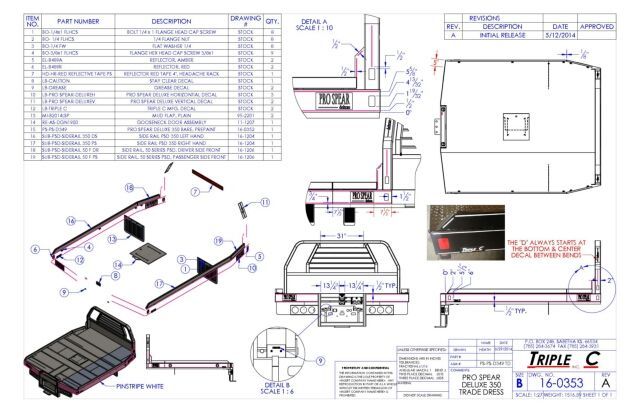

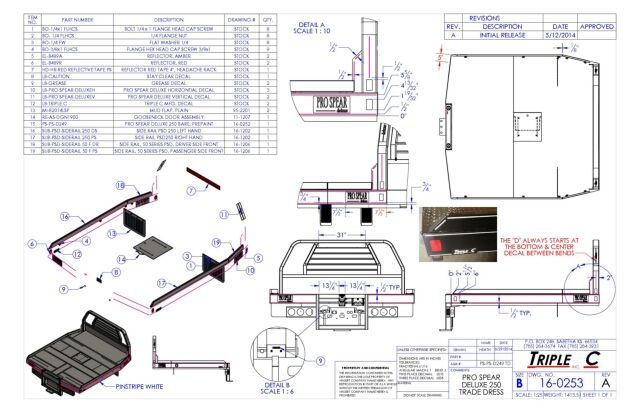

TRADE DRESS

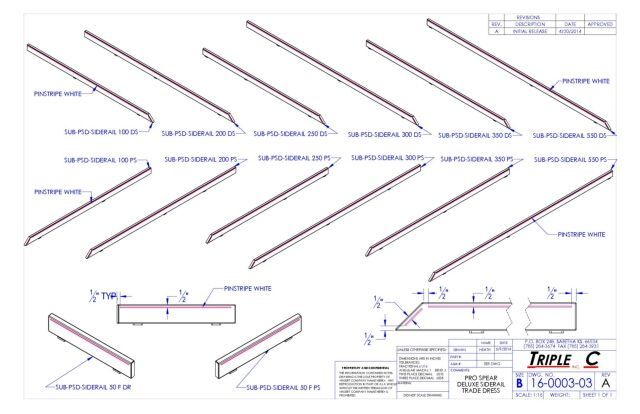

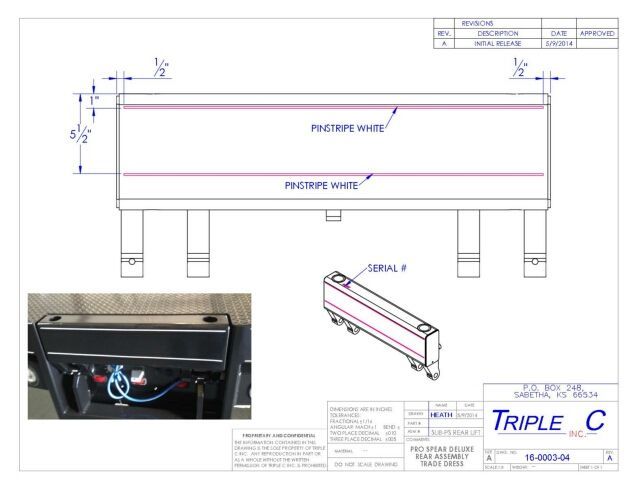

16-0003-03 Pro Spear Deluxe siderails trade dress.PDF

2014-05-09

Button

16-0003-04 PSD Rear assembly trade dress.PDF

2014-05-09

Button

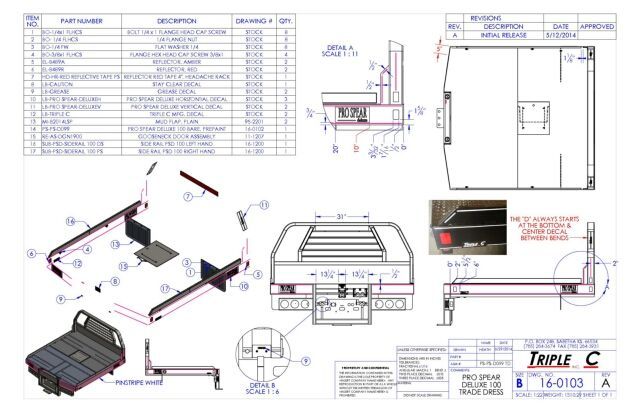

16-0103 Trade Dress Pro Spear Deluxe 100.PDF

2014-05-29

Button

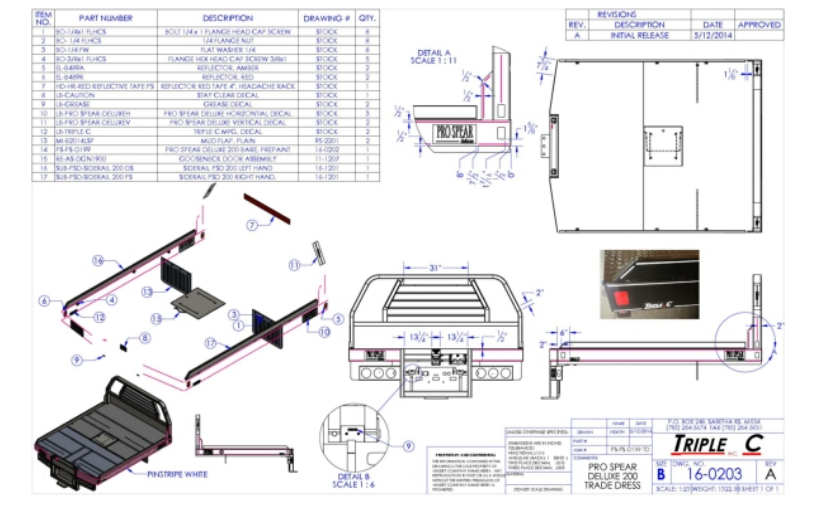

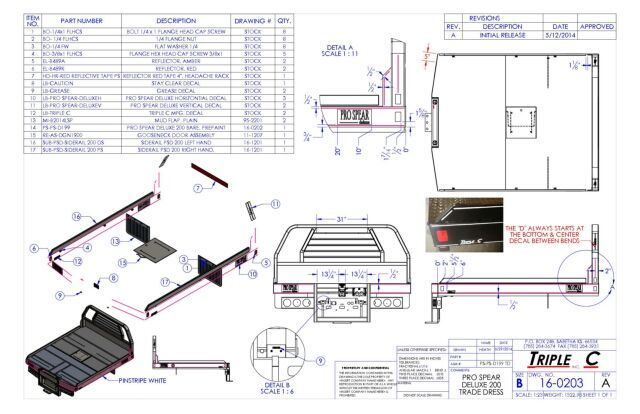

16-0203 Trade Dress Pro Spear Deluxe 200.PDF

2014-05-29

Button

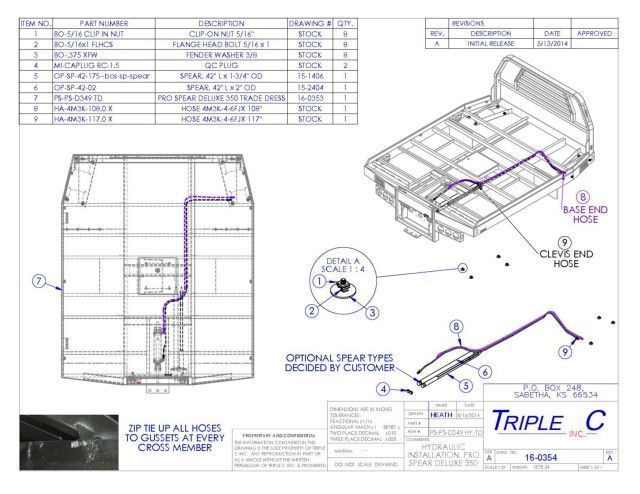

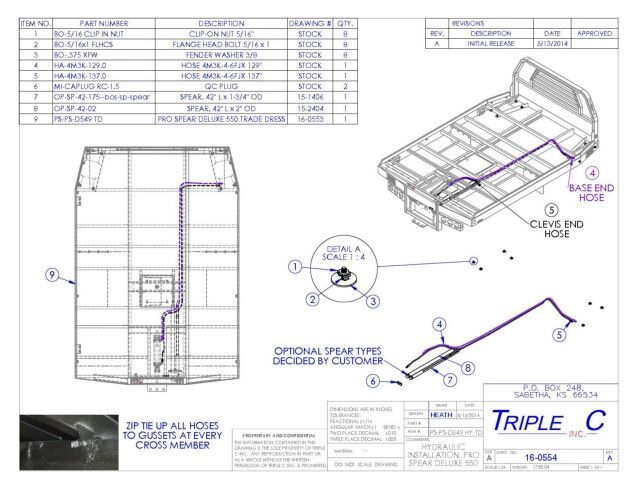

HYDRAULIC INSTALLATION

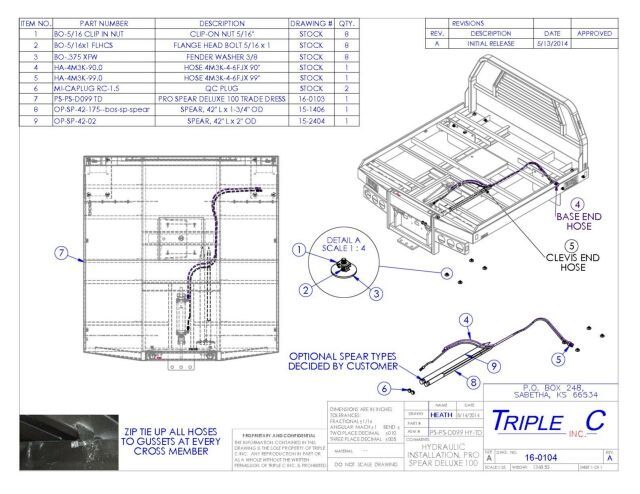

16-0104 Pro Spear Deluxe 100 Hydraulic installation.PDF

2014-05-14

Button

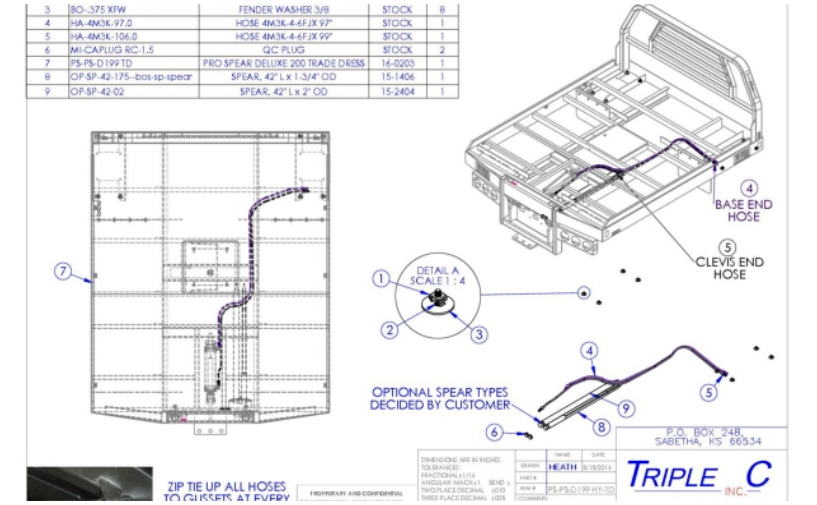

16-0204 Pro Spear Deluxe 200 Hydraulic installation.PDF

2014-05-15

Button

16-0254 Pro Spear Deluxe 250 Hydraulic installation.PDF

2014-05-16

Button

16-0304 Pro Spear Deluxe 300 Hydraulic installation.PDF

2014-05-15

Button

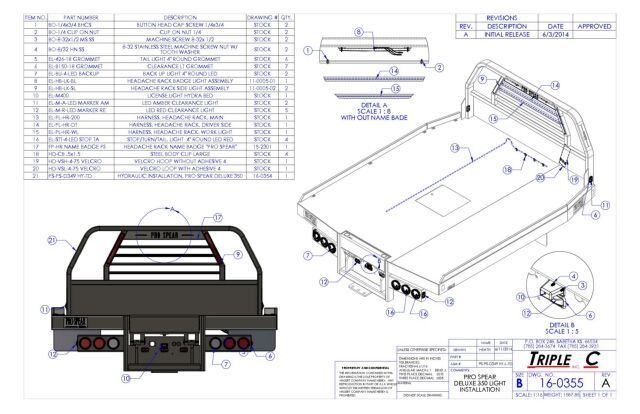

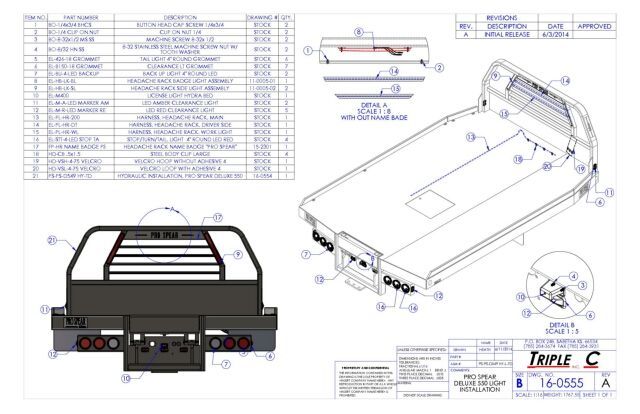

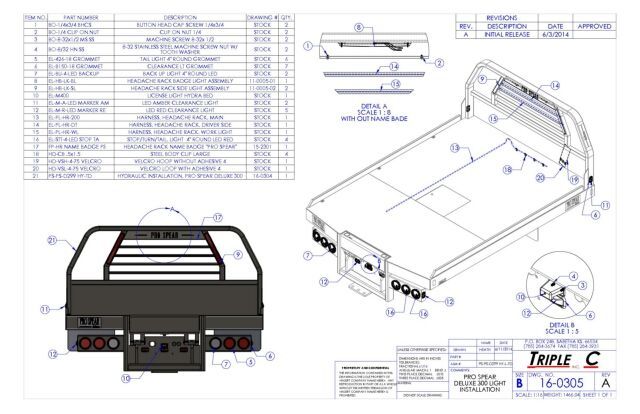

LIGHT INSTALLATION

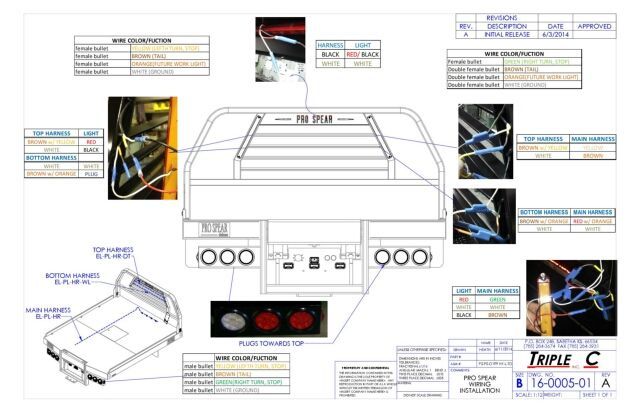

16-0005-01 pro spear deluxe wiring installation.pdf

2014-06-11

Button

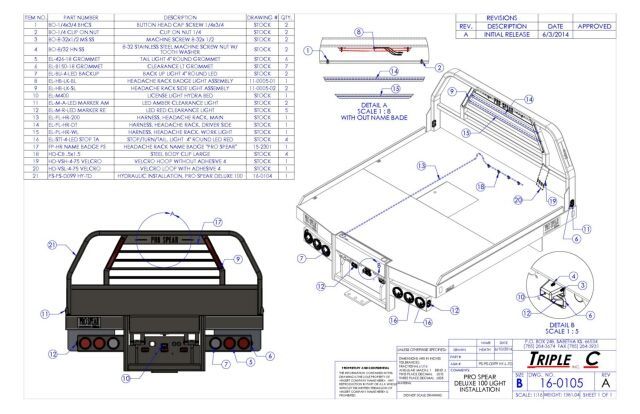

16-0105 pro spear deluxe 100 wiring installation.pdf

2014-06-11

Button

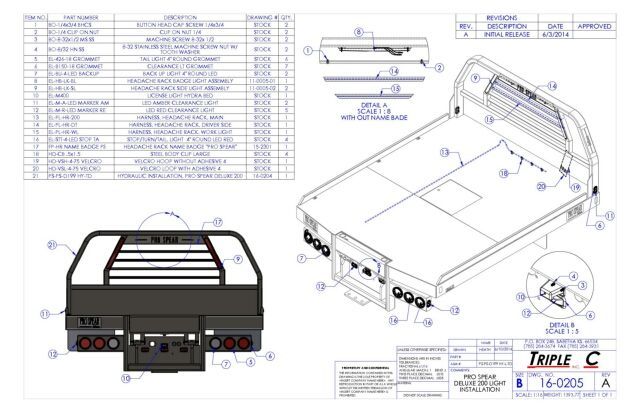

16-0205 pro spear deluxe 200 wiring installation.pdf

2014-06-11

Button

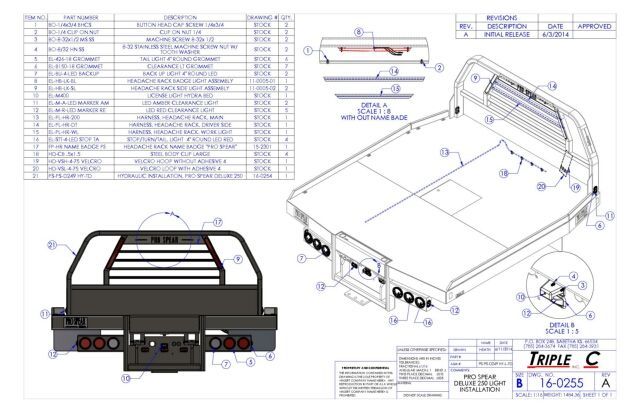

16-0255 pro spear deluxe 250 wiring installation.pdf

2014-06-11

Button
